ARCTIC P12 Max Computer case Fan 12 cm White 1 pc(s)

£15.82 £13.18

120 mm, 200–3300 RPM, PWM, 81,04 cfm, 137,69 m³/h, 12 V DC, 0.29 A, 184 g, White

More Information

More Information
Type	Fan
Suitable location	Computer case
SKU	ACFAN00293A
EAN	4895213704267
Manufacturer	ARCTIC
Availability	Y
PDF URLs	View PDF

Reasons To Buy

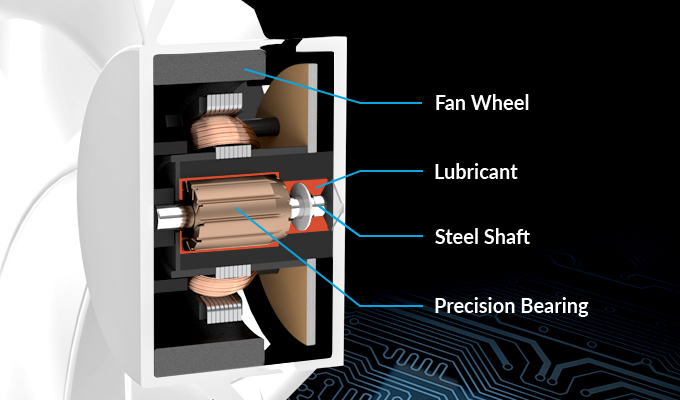

Virtually Silent due Fluid Dynamic Bearing

As a special feature, the white version of the P12 Max is equipped with ARCTIC's proven Hydrodynamic Bearing. This enables the virtually silent operation at low speeds that customers have been asking for. At maximum speed, brute performance is still guaranteed. Although theese bearings tend to wear out, ARCTIC does not compromise on durability and still offers the 6-year warranty.

Extremely Wide Speed Range

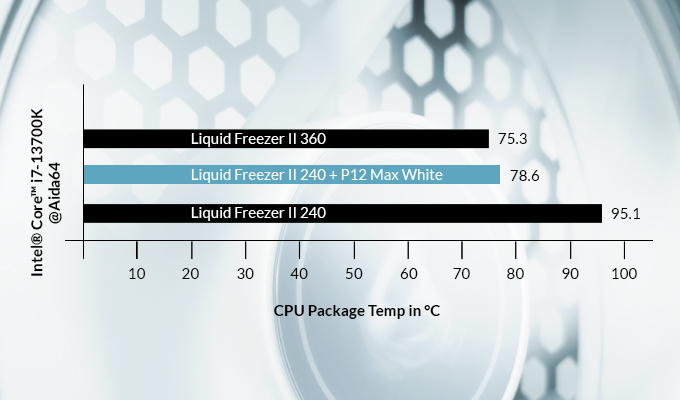

The P12 Max features the controllable speed of an impressively wide range from 200 rpm up to 3300 rpm. This enables a quiet operation when low airflow is needed and also an unprecedented level of performance on heatsinks and radiators. The P12 Max provides a significant performance boost to existing air and water cooling solutions.

Maximum Performance - Without Compromises

The P12 Max delivers focused airflow and high static pressure, making it suitable for all scenarios. The fan is optimised for use on radiators, heat sinks, pinholes and mesh. Therefore, the P12 Max is the ideal fan for enthusiasts and professionals who are looking for maximum performance with a long service life.

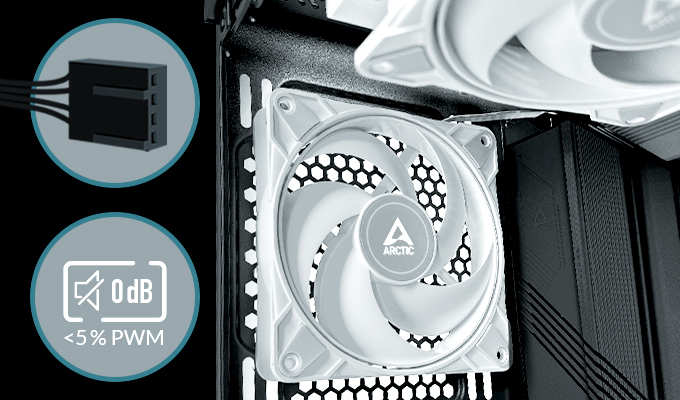

0dB Mode - Zero RPM

The fan speed can be throttled down to standstill via PWM. This allows silent operation in IDLE and at the same time guarantees maximum performance when required. Thus, the P12 Max allows an incomparably dynamic adjustment of the speed, so that the airflow can be perfectly regulated for every case.

Improved Stability

The P12 Max features a closed fan wheel design. The advantage of this fan wheel combination is a pressure stability without compromise. In scenarios with high pressure resistances and higher speeds, the force effect is distributed uniformly over the entire fan wheel and enables low-vibration rotation while maintaining high static pressure.

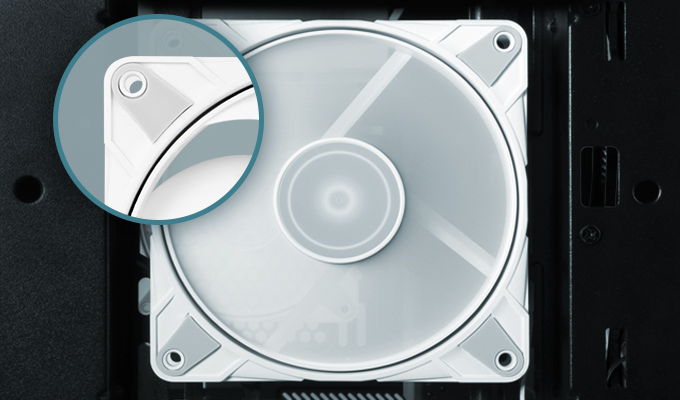

Maximum Smoothness, Minimum Vibration

Due to a sinus-magnetizing, the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. The rubber pads mounted at the corners additionally dampen the residual vibrations caused by the higher revolutions.

Description

As experts in cooling, ARCTIC has the coolest solutions for every PC problem. We offer a comprehensive range of CPU coolers, case fans, thermal interfaces, and accessories, all with an excellent price-performance ratio. Year after year, ARCTIC products set new standards in noise minimization and performance.

Specifications

Performance
Suitable location	Computer case
Fan connector	4-pin
Pulse-width modulation (PWM) support	Yes
Rotational speed (min)	300 RPM
Rotational speed (max)	3300 RPM
Noise level	0.6 sone
Bearing type	Fluid Dynamic Bearing (FDB)
Type	Fan
Operating temperature (T-T)	0 - 40 °C
Fan diameter	12 cm
Supported processor sockets	Not supported
Compatible processor series	Not supported
Maximum airflow	81.04 cfm
Maximum air pressure	4.35 mmH2O
Airflow	137.69 m³/h
Number of fans	1 fan(s)
Quantity per pack	1 pc(s)
Number of fan blades	5
Fan static pressure	4.35 mmH2O
Fan speed (min)	200 RPM
Fan speed (max)	3300 RPM
Fan's mean time to failure (MTTF)	500000 h
Design
Fan connector	4-pin
Number of fans	1 fan(s)
Product colour	White
Cable length	0.4 m
Number of fan blades	5
Technical details
Type	Fan
Fan diameter	12 cm
Supported processor sockets	Not supported
Compatible processor series	Not supported
Maximum airflow	81.04 cfm
Maximum air pressure	4.35 mmH2O
Airflow	137.69 m³/h
Number of fans	1 fan(s)
Cable length	0.4 m
Fan connector	4-pin
Ports & interfaces
Fan connector	4-pin
Power
Starting voltage	3.9 V
Voltage	12 V
Maximum current	0.29 A
Fan voltage	12 V
Fan current	0.29 A

Operational conditions
Operating temperature (T-T)	0 - 40 °C
Colour
Product colour	White
Weight & dimensions
Fan dimensions (W x D x H)	120 x 120 x 25 mm
Package depth	125 mm
Package width	127 mm
Package height	30 mm
Fan weight	184 g
Width	120 mm
Package weight	214 g
Depth	120 mm
Height	25 mm
Weight	184 g
Cable length	0.4 m
Packaging data
Package depth	125 mm
Package width	127 mm
Package height	30 mm
Package weight	214 g
Package type	Box
Packaging content
Screws included	Yes
Number of screws	4
Package type	Box
